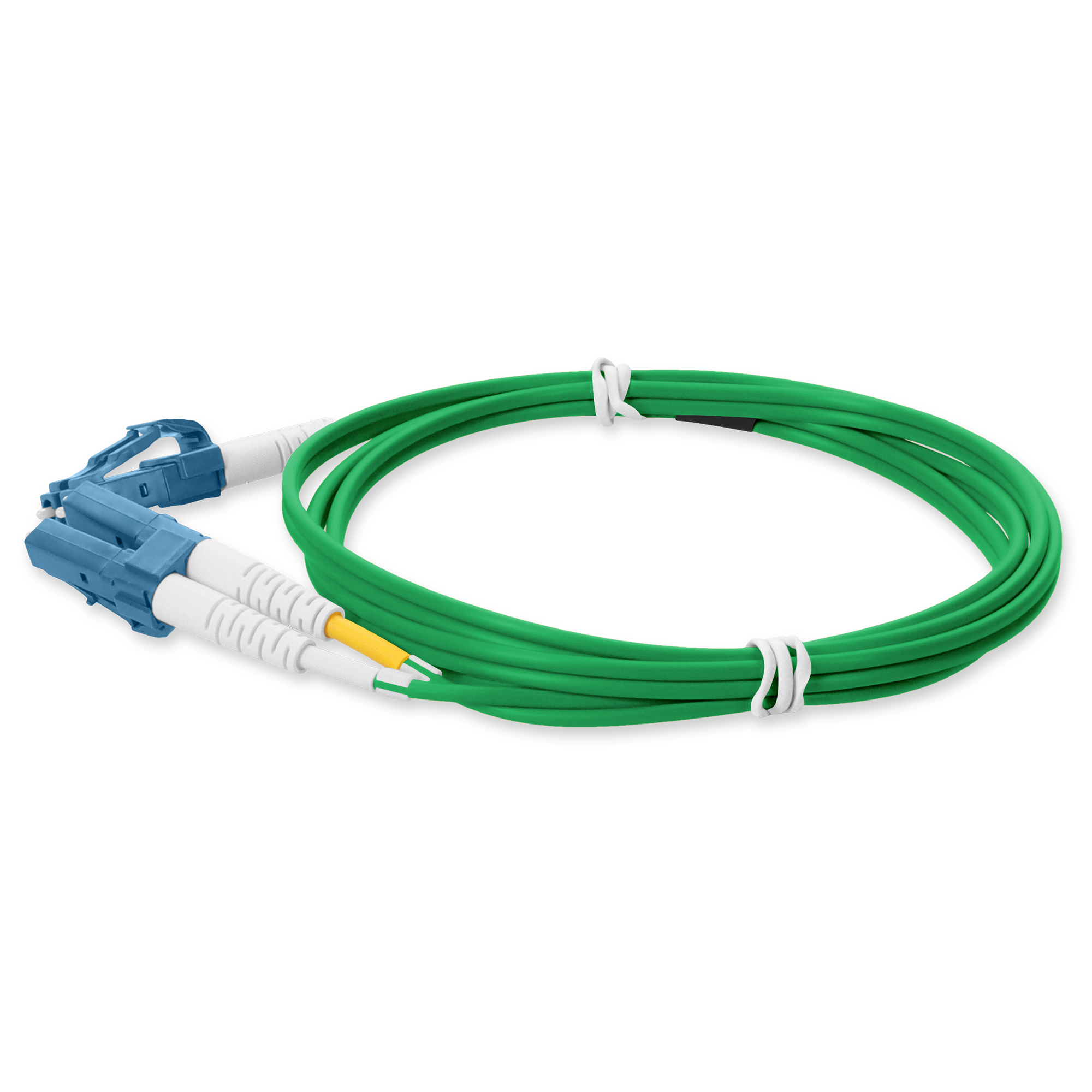

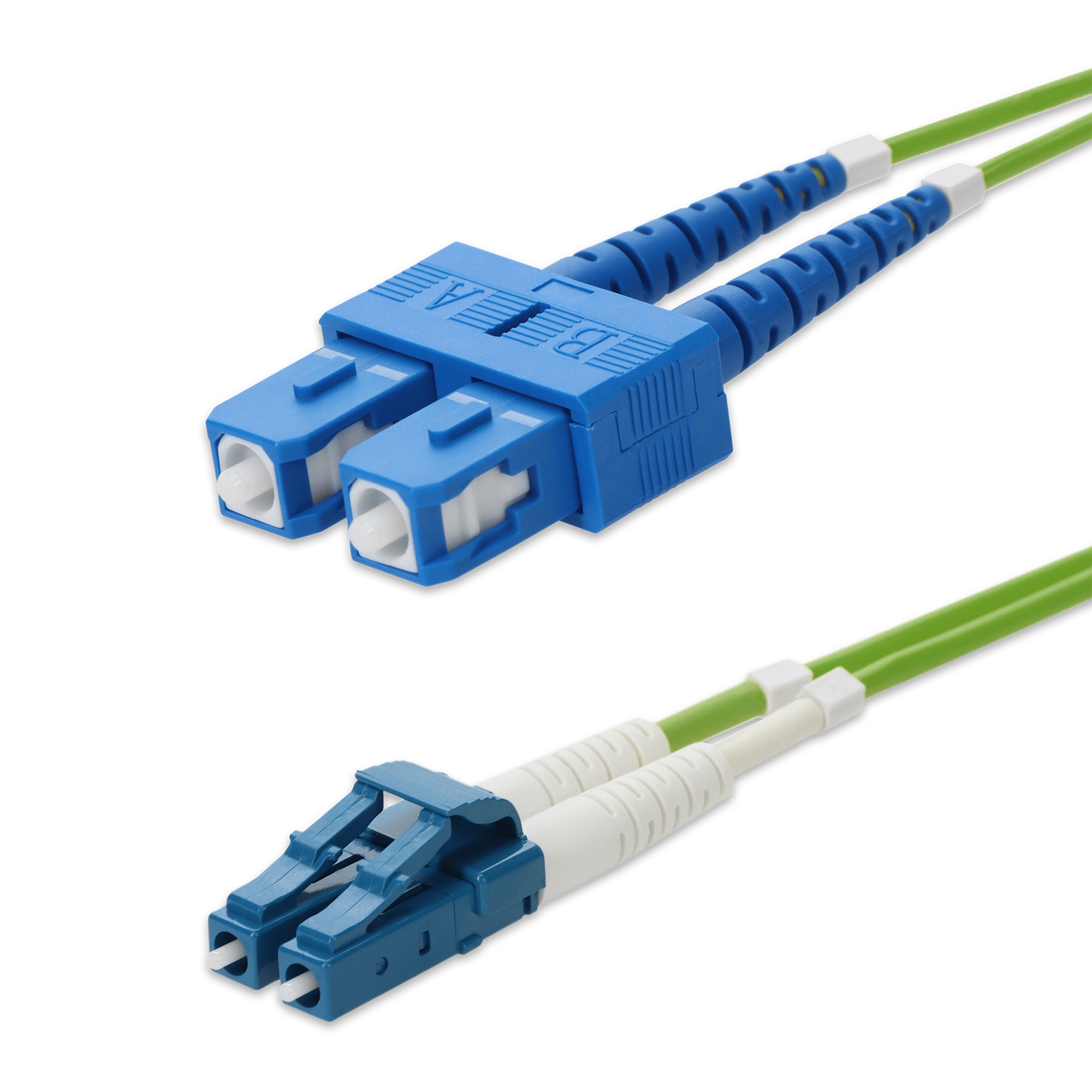

AddOn Networks ADD-SC-LC-10M9SMFP-GN-TAA InfiniBand/fibre optic cable 393.7" (10 m) OFNR Green1

AddOn Networks ADD-SC-LC-10M9SMFP-GN-TAA InfiniBand/fibre optic cable 393.7" (10 m) OFNR Green

AddOn Networks ADD-SC-LC-10M9SMFP-GN-TAA. Cable length: 393.7" (10 m), Cable type: OFNR, Fiber optic type: OS2, Connector 1: LC, Connector 2: SC, Core diameter: 9 µm, Full duplex

Manufacturers: AddOn Networks , ADD-ON

SKU: 7229922

Manufacturer part number: ADD-SC-LC-10M9SMFP-GN-TAA

UPC: 195285551856

MSRP: $95.00

Price: $67.10

Qty:

This is a LC (male) to SC (male) yellow OS2 duplex riser-rated patch straight cable that is used for high speed data transfer. OS2 is a standard single-mode optical fiber commonly used with wavelengths of 1310nm and 1550nm (9/125 microns), and has a maximum attenuation of 1dB/km. The OS2 standard is defined in ISO/IEC 11801. This riser (OFNR) cable is best suited for use in interior fiber-optic applications. Duplex cabling provides two-strands of fiber and is most commonly used in applications that utilize one lane to transmit and one lane to receive. Our patch cables are 100% compliant for all of your networking needs and are guaranteed by federal law to not affect or void OEM warranties.

Overview
Specifications
Contact Us

Products specifications

Attribute name	Attribute value
Cable Type	OFNR
Cable Length	393.7"
Doesn't contain	Halogen
Return loss	30 dB
Compressive strength	10
Compliance certificates	RoHS
Design
Certification	CE, ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, GR-409-CORE, ICEA S-83-596
Technical details
Product color	Green
Features
Fiber mode structure	Single-mode
Connector 1 gender	Male
Connector 2 gender	Male
Core diameter	9 µm
Wavelengths supported	1310,1550 nm
Data transfer rate	10 Gbit/s
Insertion loss	0.35 dB
Full duplex	Yes
Cladding diameter	125 µm
Connector 1	LC
Connector 2	SC
Fiber optic type	OS2
Connector material	Ceramic
Weight & dimensions
Cable diameter	0.0630"
Logistics data
Shipping (inner) case width	2.75"
Shipping (inner) case length	4.76"
Shipping (inner) case height	1.2"
Packaging content
Quantity per pack	1 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-10 - 70 °C
