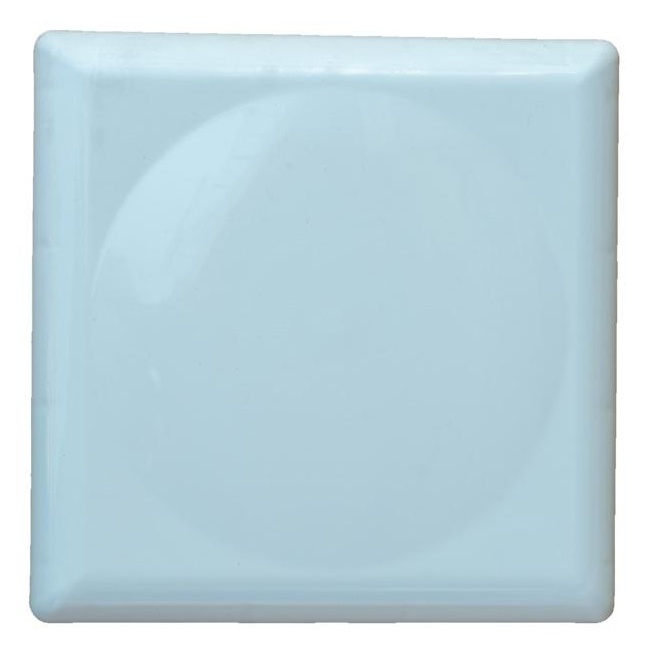

HPE Aruba Networking ANT-4x4-D707 Dual-Band 60x60deg 7dBi Panel V/H/+/-45 4 Element MIMO Outdoor Ant

HPE Aruba Networking ANT-4x4-D707 Dual-Band 60x60deg 7dBi Panel V/H/+/-45 4 Element MIMO Outdoor Ant. Antenna gain level (max): 7.5 dBi, Frequency band: 2.4 - 2.5/4.9 - 6 GHz, Antenna gain (2.4 GHz): 7.5 dBi. Antenna type: MIMO directional antenna, Antenna connector type: N-type, Connector gender: Female. Width: 7.48" (190 mm), Depth: 1.22" (31 mm), Height: 7.48" (190 mm)

Manufacturers: Hewlett Packard Enterprise , HPE

SKU: 7286212

Manufacturer part number: S0A65A

UPC: 0190017618647

MSRP: $842.00

Price: $791.94

Qty:

Overview
Specifications
Contact Us

Products specifications

Attribute name	Attribute value
Width	7.48"
Depth	1.22"
Height	7.48"
Weight	2.2 lbs
Mounting	Wall/Pole
Housing Material	Aluminum, Plastic
Antenna Type	MIMO directional antenna
Polarization	Dual polarization
Voltage Standing Wave Ratio (VSWR)	2:1
Antenna gain (2.4 GHz)	7.5 dBi
Antenna gain (5 GHz)	7.5 dBi
Horizontal beam width (2.4 GHz)	70 °
Vertical beam width (2.4 GHz)	70 °
Horizontal beam width (5 GHz)	56 °
Vertical beam width (5 GHz)	56 °
Features
Impedance	50 Ω
Performance
Connector gender	Female
Operational conditions
Operating temperature (T-T)	-45 - 70 °C
Wireless LAN features
Frequency band	2.4 - 2.5/4.9 - 6 GHz
Antenna
Antenna gain level (max)	7.5 dBi
Antenna connector type	N-type
