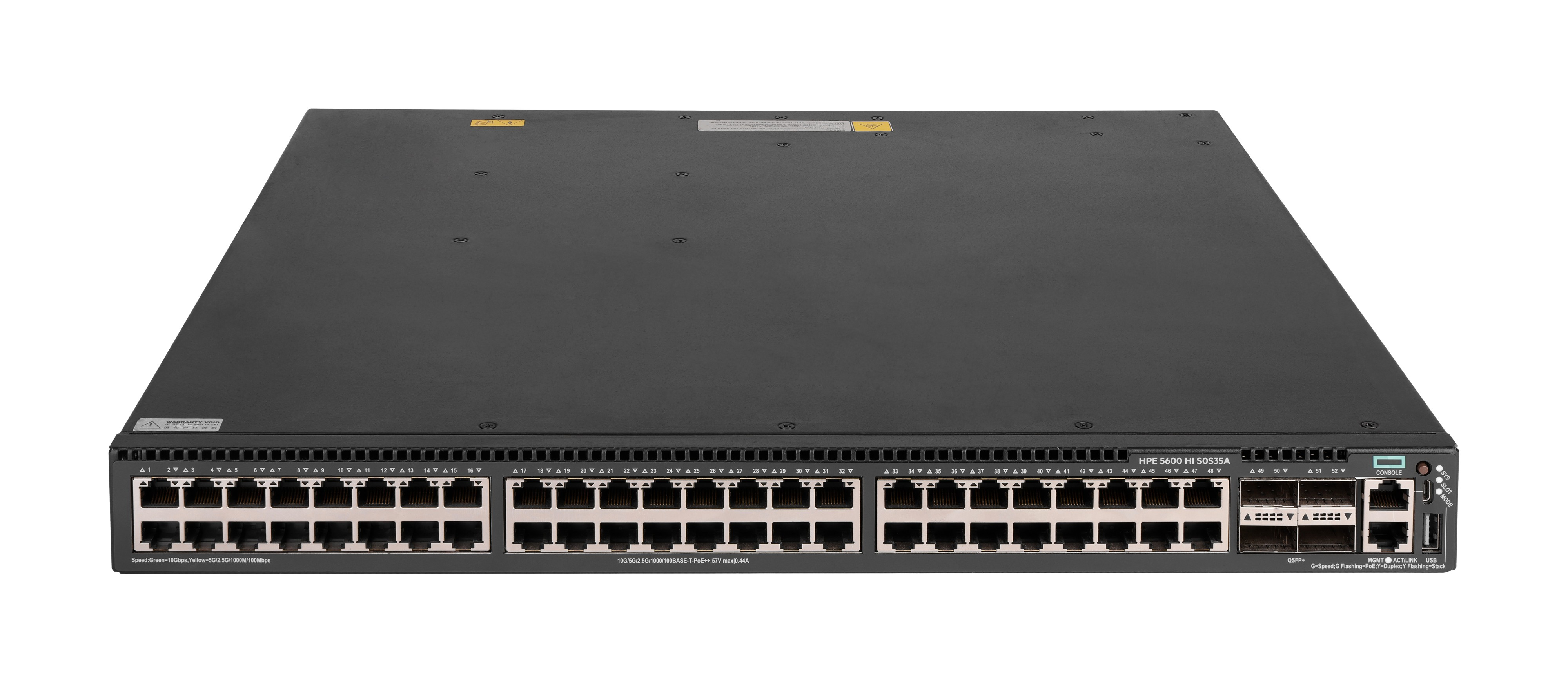

The HPE FlexNetwork 5600 HI Switch Series delivers superior performance using Multigigabit, PoE8, MACsec, AES 256 encryption, link flexibility, and scalability at the access layer of medium and large enterprise campus networks. Additional modules can be included for increased capacity. This series offers improved resiliency with DRNI and IRF, better reliability and performance in user Quality of Service (QoS), enhanced security with hardware-based MACsec and AAA authentication, impressive efficiency with dual redundant power supplies, embedded network management using Smart MC and enhanced network visibility using IMC.
What is new supporting point:
Industry-standard MACsec AES 256 support, higher MAC port binding, AAA authentications (including RADIUS authentication), and link group capacity for improved end-to-end network security.
Multigigabit 100M/1/2.5/5/10G options with PoE8. Granular, higher throughput, and switching capacity of up to 600 Mpps and 1440 Gbps, higher traffic rates and improved network performance.
DRNI combines multiple physical switches into one virtual distributed-relay system for doubling aggregate bandwidth, faster forwarding, resiliency, and high availability.
iNQA measures network packet loss performance and provides visibility into real-time application performance and health.
SmartMC provides centralized network management and maintains dispersed network edge devices at no additional cost.
VXLAN and EVPN enable both isolation and greater scalability of L2/L3 overlay services and multicast.
Products specifications
Attribute name | Attribute value |
---|
Width | 17.3" |
Depth | 18.1" |
Height | 1.72" |
Switch Type | Managed |
Power Source | AC |
Stackable | Yes |
Installed SFP modules quantity | 0 |
Installed SFP+ modules quantity | 0 |
Switching capacity | 1440 Gbit/s |
Power supply included | Yes |
Throughput | 600 Mpps |
Number of VLANs | 4000 |
Power over Ethernet (PoE) power per port | 90 W |
QSFP+ module slots quantity | 4 |
ARP inspection | Yes |
Form factor | 1U |
Product color | Black |
Internal memory | 2048 MB |
Networking standards | IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ak, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
Rack mounting | Yes |
MAC address table | 32000 entries |
Basic switching RJ-45 Ethernet ports quantity | 48 |
Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
AC input voltage | 90 - 264 V |
Number of power supply units | 2 |
10G support | Yes |
Quality of Service (QoS) support | Yes |
VLAN support | Yes |
Operating temperature (T-T) | -5 - 45 °C |
Flash memory | 1000 MB |
Switch layer | L2/L3 |
Power over Ethernet (PoE) | Yes |
