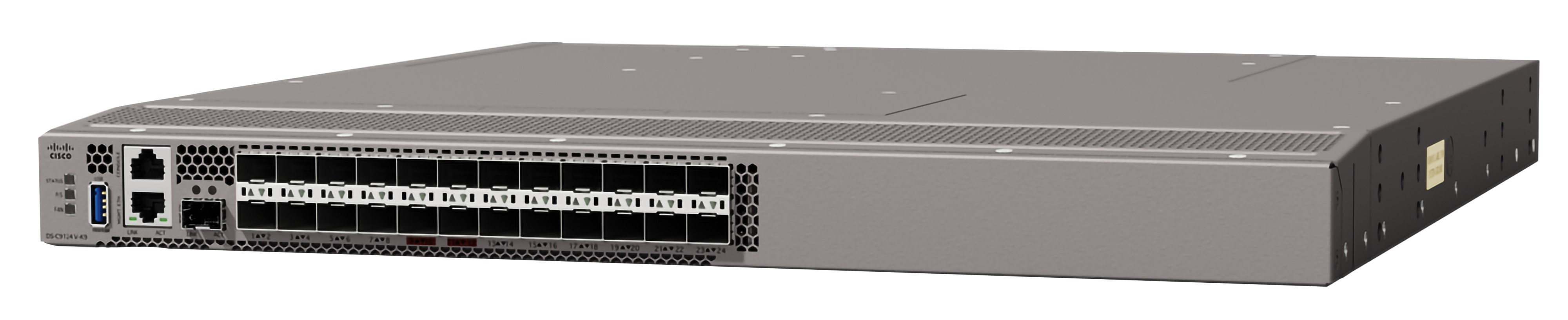

HPE SN6710C 64Gb 24/24 32Gb Short Wave SFP+ Fibre Channel Switch

HPE SN6710C 64Gb 24/24 32Gb Short Wave SFP+ Fibre Channel Switch. Switch type: Managed. Installed SFP+ modules quantity: 24, Console port: RS-232. Rack mounting, Form factor: 1U

Manufacturers: Hewlett Packard Enterprise , HPE

SKU: 7586773

Manufacturer part number: S0W92A

UPC: 0190017657448

$49,750.00

Qty:

Are you looking for a high-performance Fibre Channel (FC) switch for the modern SAN? The HPE Storage Fibre Channel Switch C-Series SN6710C delivers 64 or 32 Gbps Fibre Channel switching providing high-speed FC connectivity from the server rack to the SAN core. It empowers midsize, enterprise, and large enterprises that are rapidly deploying cloud-scale applications using extremely dense virtualized servers, providing the dual benefits of greater bandwidth and consolidation. The switch offers state-of-the-art analytics and telemetry capability built into its ASIC platform. For increased flexibility, the HPE Storage Fibre Channel Switch C-Series SN6710C is available with partially populated or fully populated ports with either 64 Gb or 32 Gb speeds. Additionally, investing in this switch for the lower-speed (32 Gbps) server rack gives you the flexibility to upgrade to 64 Gbps performance in the future.

What is new supporting point:
HPE Storage Fibre Channel Switch C-Series SN6710C configurations.
8 port upgrade license.
SKUs with up-front cost relief (designated by "v2" in description).

Overview
Specifications
Contact Us

Products specifications

Attribute name	Attribute value
Width	17.3"
Depth	18"
Height	1.72"
Weight	18.7 lbs
Switch Type	Managed
Power Source	AC
Installed SFP modules quantity	0
Installed SFP+ modules quantity	24
Power supply included	Yes
SFP+ module slots quantity	24
Access Control List (ACL)	Yes
SSH/SSL support	Yes
Authentication type	RADIUS, TACACS+
Design
Form factor	1U
Performance
Console port	RS-232
Other features
Rack mounting	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	0
Basic switching RJ-45 Ethernet ports type	No
Power
Power consumption (typical)	286 W
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Storage relative humidity (H-H)	10 - 95 %
Operating altitude	-2362.2 - 78740.2"
Protocols
Management protocols	SNMP v3
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
